Vertical Balancing Machines

We are Manufacturer, Supplier, Exporter of Vertical Balancing Machines from Pune, Maharashtra, India.



Aditi Engineers & Instruments, Manufacturer Of Dynamic Balancing Machine, Horizontal Balancing Machines, Vertical Balancing Machines, Testing Machines, Rotor Balancing Machines, Fan Balancing Machines

Vertical Balancing Machines
Technical Specifications
MODEL UNIT AV 10 AV 50 AV 100 AV 300
WEIGHT RANGE KG. 1 TO 10 1 TO 50 3 TO 100 5 TO 300
MAX. DIAMETER mm. 300 500 600 600
DRIVE HP. 1 2 3 5
BALANCING SPEED RPM. 1000 700 400 300
MIN. UNBALANCE Gm. 0.01 0.1 0.1 1
MIN. ACHIEVABLE
UNBALANCE
OR
G.mm / Kg. 		0.5 0.5 0.5 0.5
 Salient Features Regarding Electronic Control Panels
  • Unbalance meters are DIGITAL & calibrated in terms of gms.
  • Angle meters are DIGITAL.
  • Adaptor run out error compensation program is provided
  • Very easy to operate.
  • Drilling / Milling attachment (Horizontal! vertical) optional at extra cost.

DC/ AC BRAKE MOTORS will be provided to STOP the spindle immediately ft To HOLD the Job while removal of unbalance material.



Vertical Balancing Machines Manufacturer

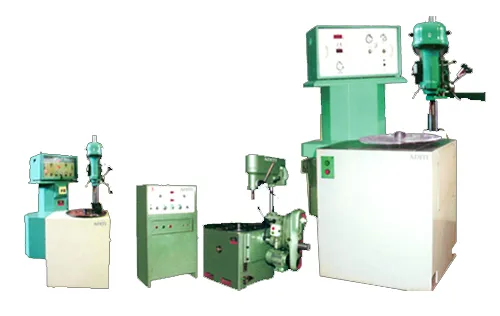

Vertical Balancing Machines are highly specialized equipment used to balance rotating components in a vertical orientation. These machines are ideal for parts that rotate around a vertical axis, such as brake discs, clutch plates, flywheels, and other similar components. By accurately identifying the imbalance in these rotating parts, Vertical Balancing Machines help to minimize vibration, noise, and mechanical stress, ensuring smoother and more reliable operation of the machinery in which these parts are installed.

Our Vertical Balancing Machines are designed with cutting-edge technology, ensuring precision and efficiency in industrial balancing processes. They are suitable for both mass production and custom balancing requirements. These machines are versatile, capable of handling a wide range of component sizes and weights. With rugged construction using materials such as MS (Mild Steel), SS (Stainless Steel), and high-grade alloys, our Vertical Balancing Machines are built to operate under demanding industrial conditions while providing long-lasting durability and performance.

The machines are equipped with advanced software that offers easy-to-use interfaces and real-time imbalance detection, allowing operators to make immediate corrections. This feature significantly reduces production downtime and enhances overall productivity. Vertical Balancing Machines are essential in industries where precision and balance are critical for the performance and longevity of rotating components.

With customizable options and modular designs, our Vertical Balancing Machines can be tailored to meet the specific needs of various industries, from automotive to aerospace and beyond. These machines are engineered to comply with international balancing standards, ensuring optimal performance and safety.


Salient Features:
• High-Precision Balancing for Vertical Rotating Components
• Capable of Handling a Wide Range of Sizes and Weights
• Advanced Software Integration for Real-Time Imbalance Detection
• Rugged Construction with MS (Mild Steel), SS (Stainless Steel), and High-Grade Alloy Materials • Easy-to-Use Interface with Customizable Features
• Suitable for High-Volume Production and Custom Applications
• Low Maintenance Design with High Durability
• Automated Correction of Imbalance for Enhanced Efficiency
• Modular Design for Easy Upgradation and Customization


Applications:
• Automotive Industry for Balancing Brake Discs and Clutch Plates
• Aerospace Industry for Balancing Flywheels and Rotor Blades
• Power Generation Sector for Balancing Rotating Turbine Components
• Manufacturing Industry for Vertical Rotating Parts in Pumps and Motors
• Heavy Machinery Industry for Balancing Shafts, Discs, and Other Components
• HVAC Systems for Balancing Vertical Fans and Blowers

Vertical Balancing Machines Manufacturer

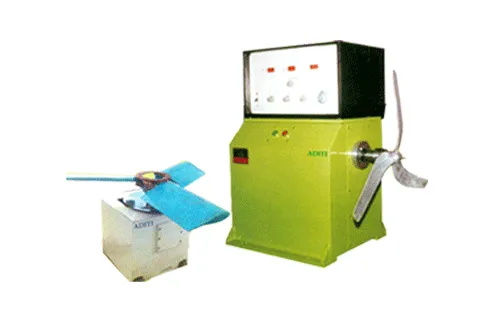

Fan Balancing Machines

Aditi Engineers & Instruments, Manufacturer Of Dynamic Balancing Machine, Horizontal Balancing Machines, Vertical Balancing Machines, Testing Machines, Rotor Balancing Machines, Fan Balancing Machines

Fan Balancing Machine Manufacturer

ADITI ENGINEER'S Vertical Balancing Machines are known for reliability, repeatability and absolute accuracy. Their well-engineered design combines a high-precision spindle with the consistency of a hard-bearing support system using piezoelectric transducers. These are mounted in a well-engineered, sturdy housing, which protects the measuring components and prevents vibration from influencing unbalance readings. Our vertical balancing machines meet a wide range of requirements. Vertical Balancing Machines are ideal for rotors with bores for locating them on the tooling, such as disc-shaped rotors like brake discs, clutch discs, fans, pump rotors or flywheels must be flexible to meet all requirements since they often vary in shape, size and weight.

Aditi Engineers & Instruments, Manufacturer Of Dynamic Balancing Machine, Horizontal Balancing Machines, Vertical Balancing Machines, Testing Machines, Rotor Balancing Machines, Fan Balancing Machines

Technical Specifications
MODEL UNIT AV 10 AV 50 AV 100 AV 300
WEIGHT RANGE KG. 1 TO 10 1 TO 50 3 TO 100 5 TO 300
MAX. DIAMETER mm. 300 500 600 600
DRIVE HP. 1 2 3 5
BALANCING SPEED RPM. 1000 700 400 300
MIN. UNBALANCE Gm. 0.01 0.1 0.1 1
MIN. ACHIEVABLE
UNBALANCE
OR
G.mm / Kg. 		0.5 0.5 0.5 0.5
  Features
  • Standard balancing machines for rotor sizes from 10 grams to 600 kg.
  • Single-plane measurement.
  • Universal or custom tooling (rotor clamping adaptors)
  • Integrated correction systems, like drilling, milling and weight addition
  • Custom colors
